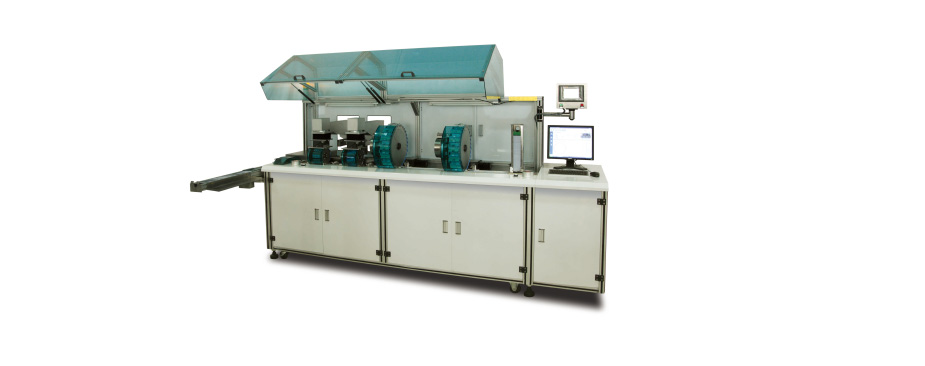

Dual/multiple Barrels Personalization Machine is for 1 chip in 1, 2 chips in 1 and 4 chips in 1 GSM card personalization: contact encoding and laser graphical printing.

Stations/functions:

1 x Card feeding magazine with the capacity of 500 ISO cards.
1 x Double card detection.
1 x Color sensor.
1 x Chip detection sensor.
1 x Double card detection before barrel entry.

1, 2 or more x Chip personalization barrel with 64 Mingsen reader for 1 chip in 1 card and 2 chips in 1 card; (with 64 contact encoding heads; when encoding, there are 32 cards been personalized (1 chip in 1 card OR 2 chips in 1 card) inside the barrel)

1 x Card flip-over.
1 x Double card detection before barrel entry.
1 x Chip personalization barrel with 64 Mingsen readers for 4 chips in 1 card; (with 64 contact encoding heads; when making 4 in 1 card, there are 16 cards been personalized inside the barrel).
1 x Card flip-over.
2 x HS 50W fiber laser and OCR (OCR optional) (each laser with one smog filter).

1 x Card flip-over.
1 x card collecting magazine with the capacity of 500 ISO card.
1 x Reject box.

Software:
Card system: to control machine production.
Card system data manager: integration support to enable users to interface directly with the machine to load jobs/data as well as get statistics from the machine.
SDK, DLL (dynamic link library) are provided for users to develop their own card manufacturing software.
SQL - data base.

8,000 card/s (depending on perso info quantity)

* The IC Card Personalization System is a large, professional and industrial IC card personalization equipment which is applied to contact ISO card (one chip in one card), half card (two chips in one card) as well as quarter card (1 card with 4 chips).
* PC & servo control. The machine can run 24 hours×7 days with stable and excellent performance, and the maximum speed of completing read/write and laser graphical printing can reach 8,000 cards/h.
* According to the production requirement, it can be equipped with 8-64 contact or contactless processing stations (for 1~4 chips) with Mingsen or other reader, 1~2 sets of laser graphical printing units, several OCR inspections are optional.

* The system is composed of three parts: mechanical configuration, electronic control and data processor. All of them with online security monitoring. SDK, DLL (dynamic link library) and application interface are provided for users to develop their own card manufacturing software. And it supports background control, remote data loading, encryption, etc.
