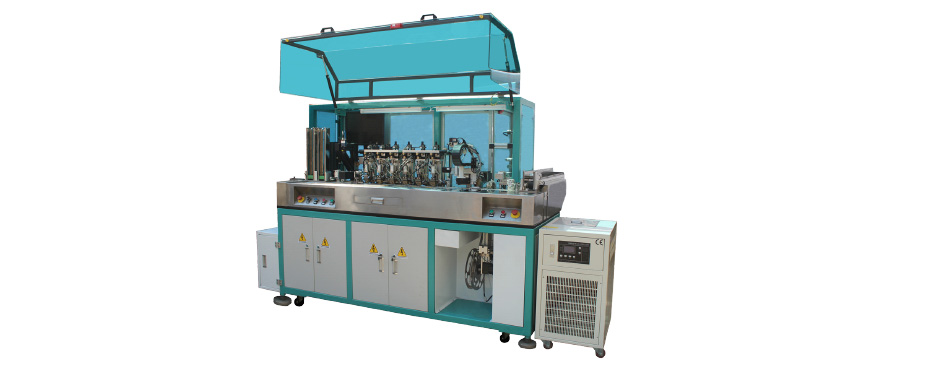

HDI6000 IC card embedding machine is for embedding chip into a card cavity. It is available for ACF DI card chip embedding.

Machine stations/functions

Card loading unit: 1 conveyors low cards weigh management system

Glue dispense unit

Cavity presence control

Pre-heating system

Embedding unit:
Module cutting accuracy of the microcircuit punching : ± 50μm with Cpk>1.33

Cutting tool will be cooled and punching dusts will be sucked up by a vacuum clean
Chip preheating

Chip insertion Accuracy can reach ±0.01m

 Module presence control

Pressing unit:

4 Hot pressers

2 Cold pressers

Thickness measurement accuracy: +/-3um

ATS test
ATR detection
Module over height control
OCR detection
Reject station
Card unloading unit: 2 magazines (each 500 cards)

Throughput::6000cards/H

• HDI6000 is control by PC and servo motor.
• Conveying belt system is driven by the clutch-brake motor. Cards are sent automatically by conveyor and has high accuracy of positioning .
• The direction of milled and un-milled card will be automatically inspected.
• Different size of implanting mould is easy to replace.
• The pneumatic clip with the function of automatical adjustment will put the card on the desired place.
• The Optical-fiber sensor can test the IC card integrity before implanted.
• IC card will be automatically positioned to ensure the high accuracy of implanting.
• Implanted card is up to ISO7816 standard and the machine equipped with the device for testing the accuracy of the implanted chip
• Test the modular ATR before collecting card.
• OCR to check embedding chip result.
