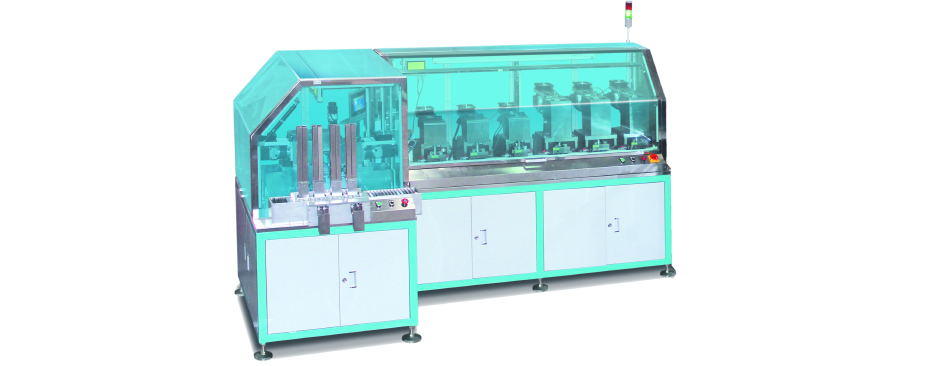

This machine is for ISO, half card (1 card with 2 chips), quarter card (1 card with 4 chips) 2FF, 3FF and 4FF punching.

Punching Machine station:

1 x Small buffer magazine to receive cards from embedding
1 x card loading magazine: one vertical fixed magazine with 500 cards capacity
1 x double card detection
Punching station 1: 4FF punching 4FF
Punching station 2 : 3FF punching
Punching station 3: 2FF plug
Punching station 4: 2FF stamp
Punching station 5: Card speration
Punching station 6: Card speration
4 x card unloading magazines: quarter card collection.

Throughput: 6, 000 PCS/H

Punching Position Accuracy: ±0.05mm

Total Power: 3kw

Power Supply: ~220V 50/60Hz

Ambient Temperature: 0-40degree

Air Supply：≥0.5MPa

Humidity：15~90%

* Servo motor driven, punching result is neat.
* 2FF slot, 3FF slitting and 4FF slitting punching in one process.
* Touch screen easy to operate.

* Could be updated to half card and quarter card punching.
