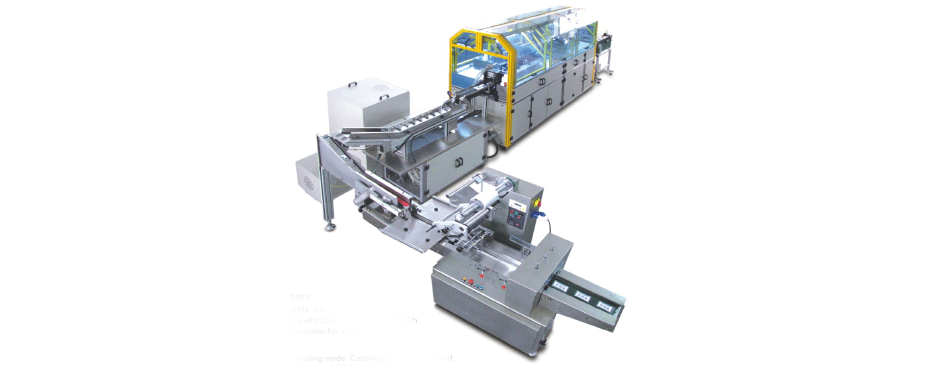

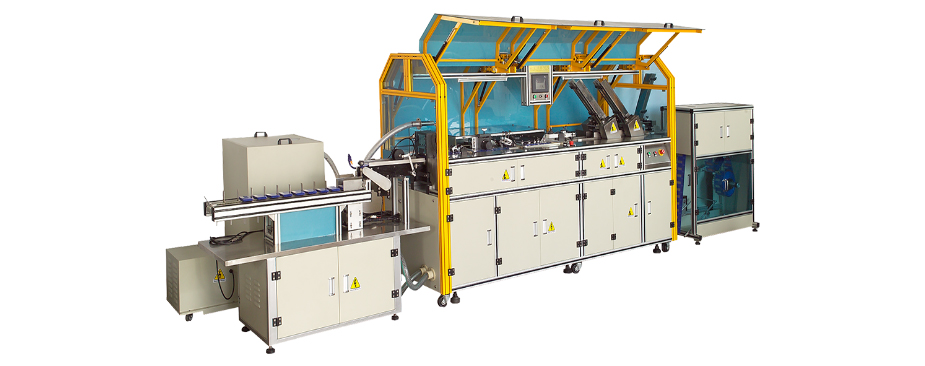

HDB500 Ultrasonic High-speed Card Wrapping Machineis for ISO size card or leaflet wrapping.

Machine standard stations/functions

*Film releasing unit *1: to release folded film.

*Card feeder *1: with the capacity of 500 ISO cards.

*Double card detection*1: to detect accidently fed double card.

*Card/leaflet standard feeder *1: with the capacity of 500 ISO cards.

*Double card detection*1: to detect accidently fed double card.

*Ultrasonic bag making module *1: to make bag.

*Card/leaflet inserting unit*1: push card into bag.

*Double card detection*1: to detect if the bag has extra card.

*Ultrasonic bag sealing unit *1: to seal bag.

*Excess film cutting unit*1: to cut extra film.

*Bags cutting unit *1: to cut bag in a certain number.

*Bags stacking/collection unit*1: to collect cut bags.

*Excess film collecting unit*1: to collect excess film.

Productivity: 500 pcs/min for standard cards.

Power: ～220V, 50 Hz, 5 KW

Air supply: dry, free of matter, 5～8kg/cm²，1m³/h

• Double grade ultrasonic sealing mode. Continuous high-speed card feeding and sealing with exact, reliable card positioning and elegant, tight card packing effect.
• Convenient touch screen operation interfaces in English/Chinese.
• Various personalized sealing patterns are available to secure safety against piracy.
• Packing modes for both single/double cards and card + leaflet. Packed cards can be separated to single cards or card chain in any preset card stack. Sealing edges of zigzag, letters or personalized designs are possible.
• Feeder is suitable for any cards or paper leaflets of thickness 0.02～3mm.
• Feeding thickness inspector guarantees no accidental twin cards are packed.
• Pack positioning device is optional to coincide the film logo with the card.
• Card serial number inspector is optional to secure correct card numbers and set up data records.
