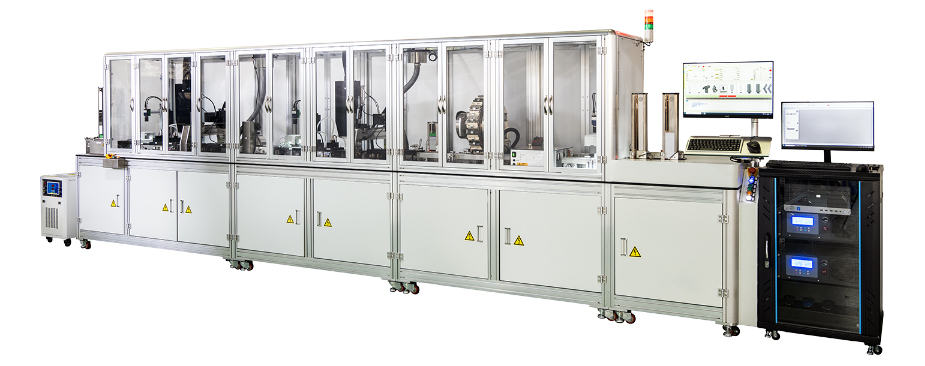

MSDP6000 DOD Personalization Machine is for the personalization of varies kinds of magnetic stripe and IC card, such as financial card, social security card and membership card, etc. It prints brilliant high-resolution 3D result and could support double sides color printing. Printing head is easy to clean. Modular design configuration is concise, easy to operate and maintain.

Throughput: 5,000 UPH

Card dimension: 86mm x 54mm

Card thickness: 0.76mm-1mm

Total power: 12KW

Power supply: ~220V 50/60HZ

Air supply: 0.6~0.8MPa

Out-line dimension:9900mm x 700mm x 1600mm

*MSDP6000 is an innovative product for card personalization. It could be used in the personalizing of financial card, membership card and other cards.

*MSDP6000 equips full function for financial card personalization, including magnetic stripe encoding, contact and contactless encoding, card double sides multiple color drop-on-demand inkjet printing, inspection, etc. High-resolution DOD, brilliant printouts are lightfast and resistant to water, wear, and solvent.

*It can be upgraded, expanded, added or removed functionsby its modular design and DOD could be used for multiple color, multiple products productions.

*The system is composed of three parts: mechanicalconfiguration, electronic control and data processor. SDK, DLL (dynamic linklibrary) and application interface are provided for users todevelop their own card manufacturing software.
