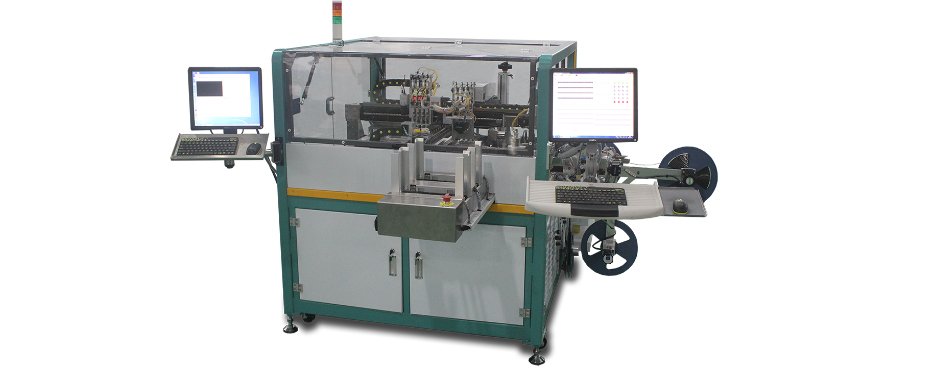

M2M Chip Personalization Machine

IOT M2M Chip Personalization Machine is for M2M module/chip personalization, laser printing and electrical + vision inspection.

Machine General stations/functions:

Input reel *1 : to load module;

Rotation *1: to change the direction of module if necessary;

Positioning *1: to position module;

Module encoding *32 socket: with 32 Mingsen reader for module encoding;

Rejecting *1: to reject error module in encoding;

Transporting *1 set: to transport module;

Laser *1: Mingsen's HS 20W fiber laser;

ATR *1: to detect module ATR;

Rejecting *1: to reject error ATR module;

OCR *1: to detect laser printing result;

Rejecting *1: to reject error laser printed module;

Rotation *1: to change the direction of module if necessary;

Rejecting *1: to reject module in rotation station when emptying the machine;

On-line remaking *1: to remake error module;

Module loading *1: to load good module into reel;

Sealing *1: to seal the loaded reel;

Cutting *1: to cut finished tape.

Vacuum *1: to supply vacuum for machine.

Smog filter *1: to suck laser printing dust.

Machine is capable to make 5*6, 4*4.2 and 2*2 module.

Machine will alarm if any module dropped during the transportation.

Dropped module can be easily found due to machine's neat surface.

Camera structure provided for module monitoring.

Throughput:3,000 +UPH (depending one perso time)

* Support QFN: 5mm*6mm, QFN 5mm * 5mm, DFN 4mm *4.2mm, 2mm*2mm, Sim, MFF2, DFN8, WLCSP etc. If required, minimum 1.5*1.5mm module could be made.

* Material format: tray & tape; Reel/tray in à reel/tray out

* Shortest change time of different module in the market, no need to change suction cup for different size chip. Swittching procuction between 5*6 and 4*4.2 module time will be less than 30 minutes.

* Support online re-perso.

* OCR Checking module.

* Servo motor and lead screw transporting method enjoys higher accuracy and stability than normal belt transporting.

* Cameras to check quality.

*It supports background controlling, remote data loading, encryption, etc.

* With stable performance, the machine can still run normally even on the condition of continuous running for 24 hours×7 days.
