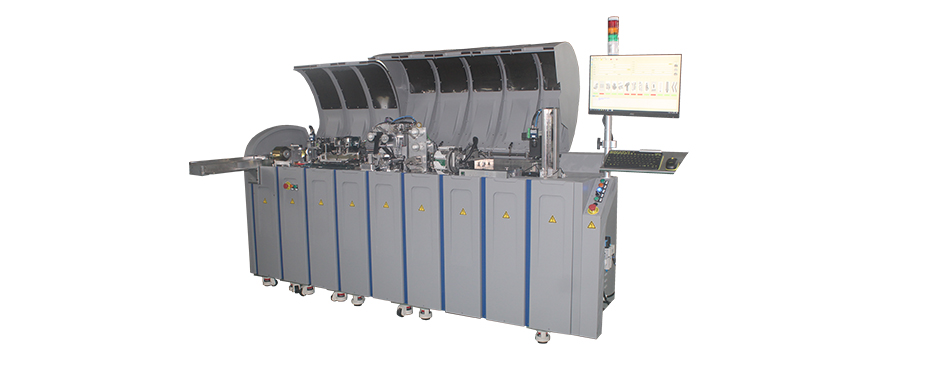

Small Banking Card Personalization Machine is for the read & write of banking card, social security card and membership card, etc. and the personalization of chip as well as embossing and thermal transfer printing.


Machine stations/functions:

Card feeding magazine × 1: with the capacity of 500 ISO card.
Double card detection × 1: to detect double card.
Magnetic strip encoding (Rinas) x 1: magnetic stripe HICO/ LOCO encoding.

IC personalization barrel × 1: 8 x chip encoding station (small barrel) Contact x 8 + contactless x 4. For normal EMV IC encoding or Mifare/UL etc. encoding.

Cleaning × 1: to clean card's surface.
Thermal printing × 1: to thermal print on card surface with single color.
Embossing and indent × 1: with standard letters, marks and numbers to emboss and indent.

Tipper × 1: to do gold, silver or other color tipping on embossed card.
Card loading conveyor ×1: to collect card horizontally.
Reject box × 1: to collect rejected card.

Throughput: 1,000 cards/hour

  • Small Banking Card Personalization Machine is a small size, professional IC card perso equipment which is applied to the personalization production of PBOC3.0 banking cards, social security cards and other cards (ISO7816, ISO14443, ISO15693 standard)
  • It can be upgraded, expanded, added or removed functions by its modular design and it supports background controlling, remote data loading, encryption, etc.
  • Fully electrical machine, no compressed air required.
  • The system is composed of three parts: mechanical configuration, electronic control and data processor. All of them with online security monitoring. SDK, DLL (dynamic link library) and application interface are provided for users to develop their own card manufacturing software.
