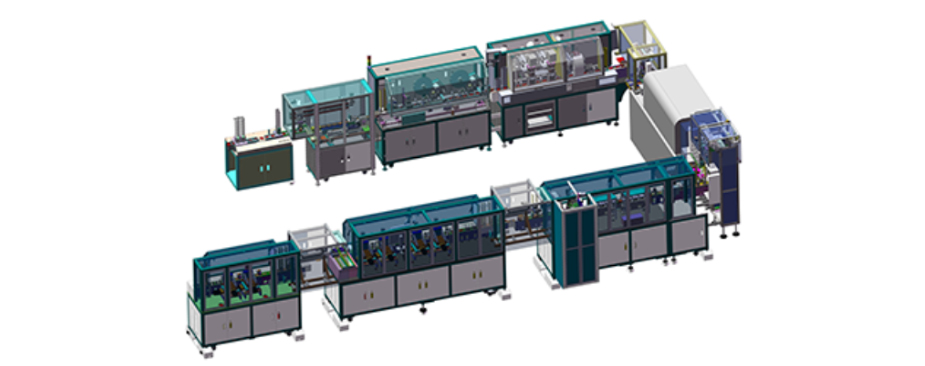

Large High-speed Smart Line is a new invention in the Smart Card making industry, It’s Consists of the following machine combinations:

Milling Machine 1 + Milling Machine 2 + Embedding Machine + Card Punching Machine + Personalization Machine +Inkjet & labeling machine+ Half card Punching Machine. This system is Suitable for ACF process.

Large High-speed Smart Line  With a master control system controls all subsystems, subsystems combination, real time production coordination, real time production monitoring, real time production QC, throughput buffer and balance can be achieved. It minimized manual work and human influence and reduced circulation, then higher efficiency, better quality and more safety can be ensured. It has been used by world leading card manufacturers worldwide.

The machines in Smart Factory can run together automatically as one line and can also produce independently.

Key equipment configuration:

Milling Machine station:

Card feeding conveyor × 2: each with the capacity of 500 ISO card.

Double card detection × 1: to detect accidently feed double card.

Card orientation detection × 2: color sensor to detect card direction.

Milling × 2: X-Y axis accuracy: ±0.015mm, Z axis accuracy: ± 0.015mm, flatness accuracy: ±0.005mm

Cleaning station × 2: to clean milling dust in cavity.

Card loading magazine × 2: each with the capacity of 500 ISO card.

Reject box × 1: to collect rejected card.

Chiller × 1: to provide cool water for machine.

Vacuum × 1: to suck milling dust.

Embedding Machine station:

Card transporting × 1: to transport card from milling machine to embedding machine.

Card feeding magazine × 1: with the capacity of 500 ISO card.

Double card detection × 1: to detect double card.

Cavity detection ×1: to detect if card been milled or not.

Tape releasing × 1: to release chip.

Chip punching × 1: to punch chip.

Chip embedding × 1: to embed chip.

Module presence detection × 1: to detect if the card been embedded or not.

Hot pressing × 4: to hot press embedded chip.

Cold pressing × 2: to cold press embedded chip.

Chip height detection × 1: to detect chip height.

Vision detection × 1: using OCR to detect chip embedding result.

ATR detection × 1: to detect ATR.

Card loading magazine × 1: with the capacity of 500 ISO card.

Reject box × 1: to collect rejected card.

Chiller × 1: to provide cool water for machine.

Card Punching Machine station:

Personalization Machine station:

Card transporting × 1: to transport card from embedding machine to personalization machine.

Card feeding magazine × 1: with the capacity of 500 ISO card.

Double card detection × 1: to detect accidently fed double card.

Card direction detection × 1: a color sensor to detect card direction according to different color.

Chip personalization barrel with 32 readers for ISO card x 1: Mingsen reader. When encoding, there are 32 ISO cards been personalized inside the barrel. When encoding 2 chips in 1 card, there are 16 cards inside the barrel.

Card flip-over × 1: to flip-over card.

Laser No.1: a Mingsen HS 50W fiber laser and smog filter to do laser graphic printing.

OCR (Optional) × 1: to check laser printing result, failed card will be rejected.

Card flip-over × 1: to flip-over card.

Laser No.2: a Mingsen HS 50W fiber laser and smog filter to do laser graphic printing.

OCR (Optional) × 1: to check laser printing result, failed card will be rejected.

Card flip-over × 1: to flip-over card.

Vertical card collecting magazine with the capacity of 500 ISO card x 1

Productivity：10,000 chips/h

By adopting the concept of Industry 4.0 for the first time in the smart card industry, Large High-speed Smart Line realizes the whole process of smart card assembly line operation, reduces the intermediate operation and circulation links, and maximizes machine utilization through the most efficient capacity matching and automated production.

Through smart control system, it realizes collaborative operation and have functions of self-perception, self-judgment, self-adaptation, and self-decision. It realizes online monitoring and detection across the board to ensure that the production process is 100% controllable and the products are 100% qualified. With freeze-frame transmission, it realizes absolute synchronization of data information and cards.

  The smart production line is a successful symbol of the transformation and upgrading of the card manufacturing industry.
